1,

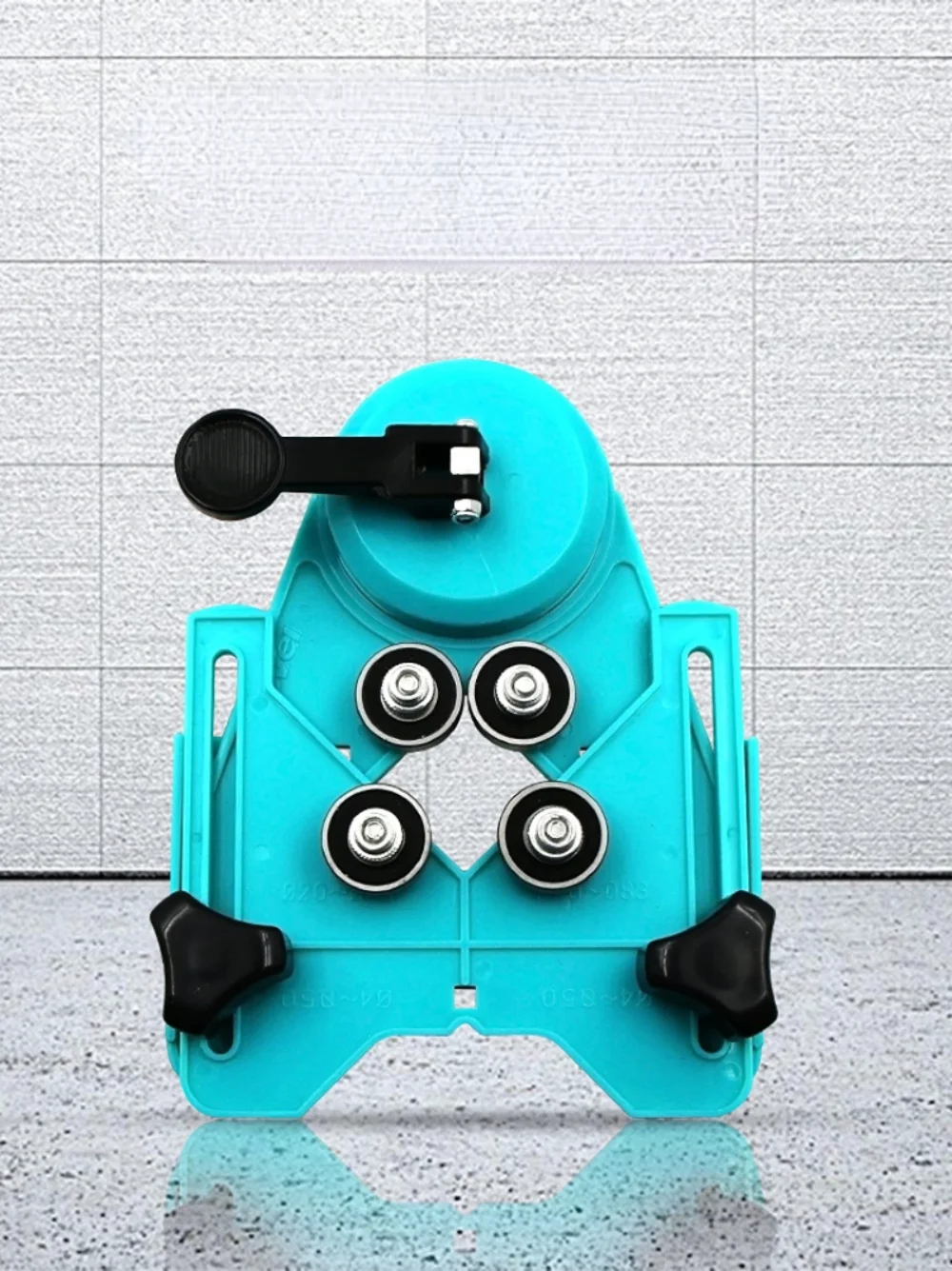

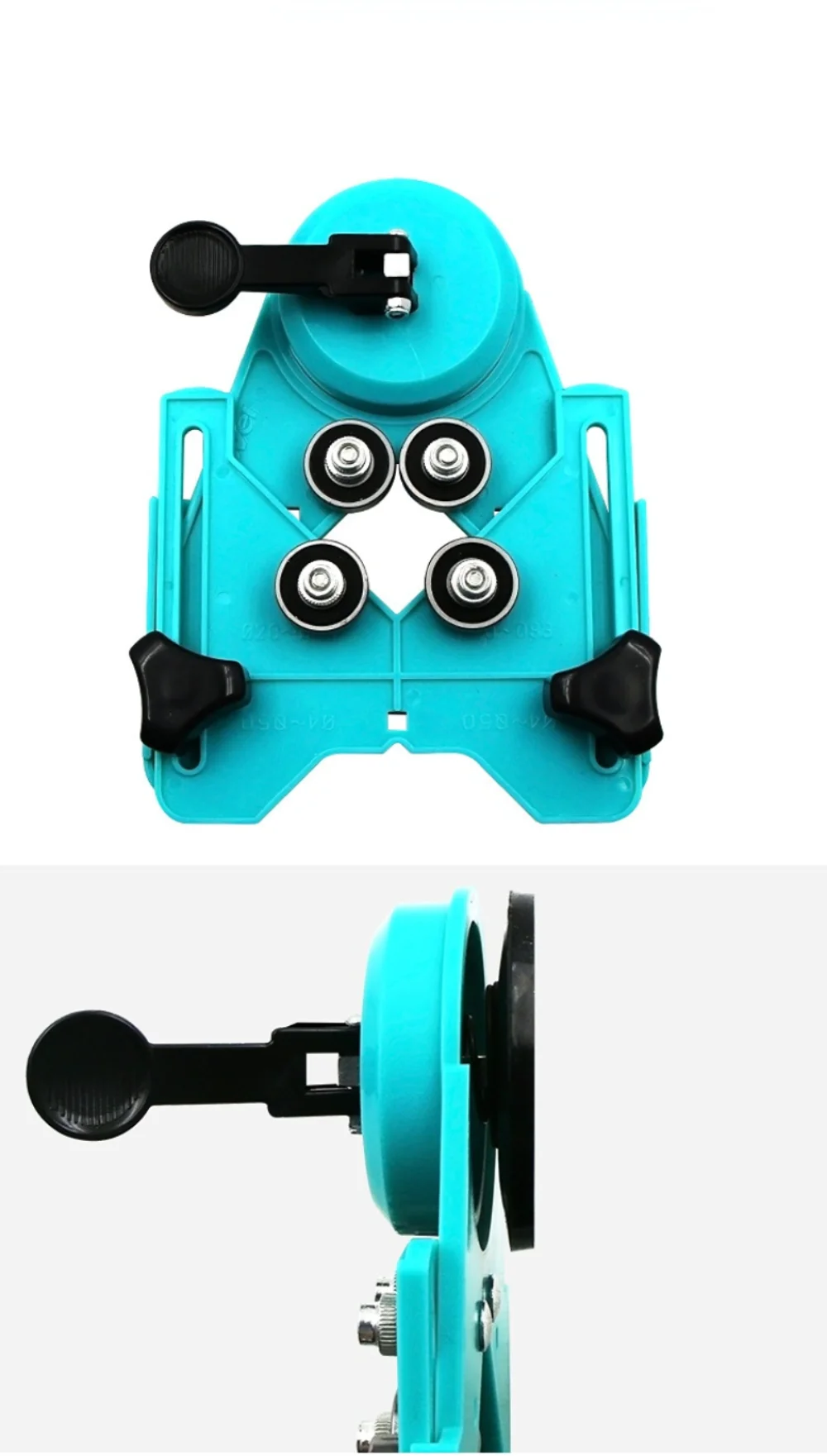

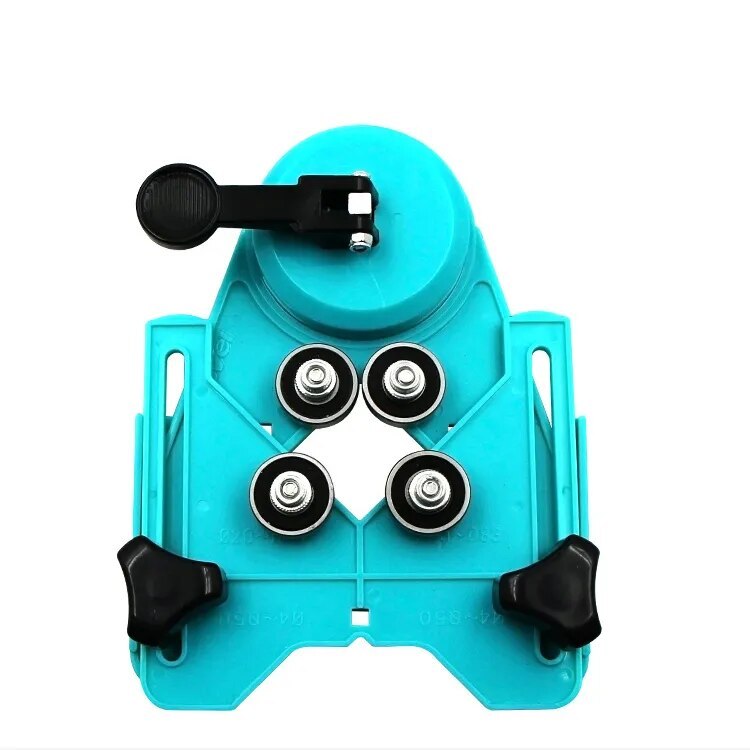

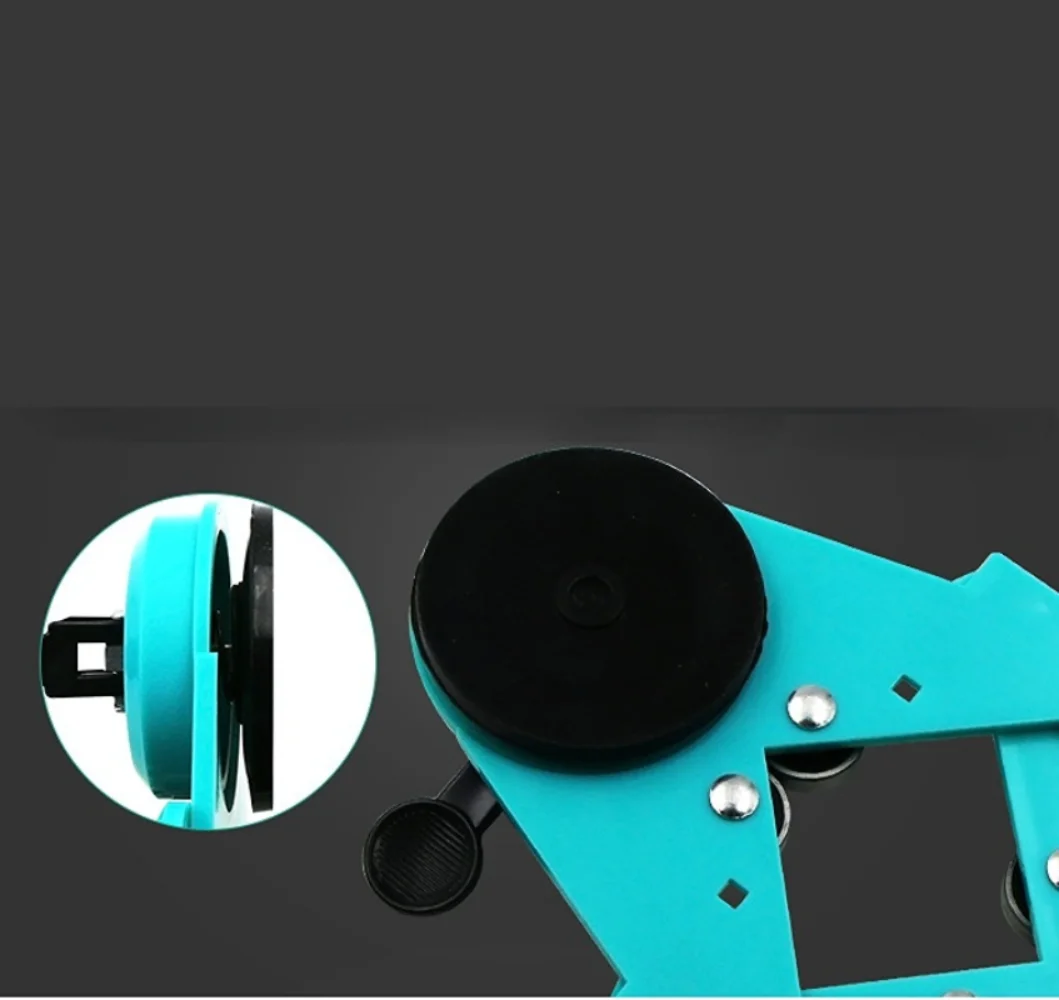

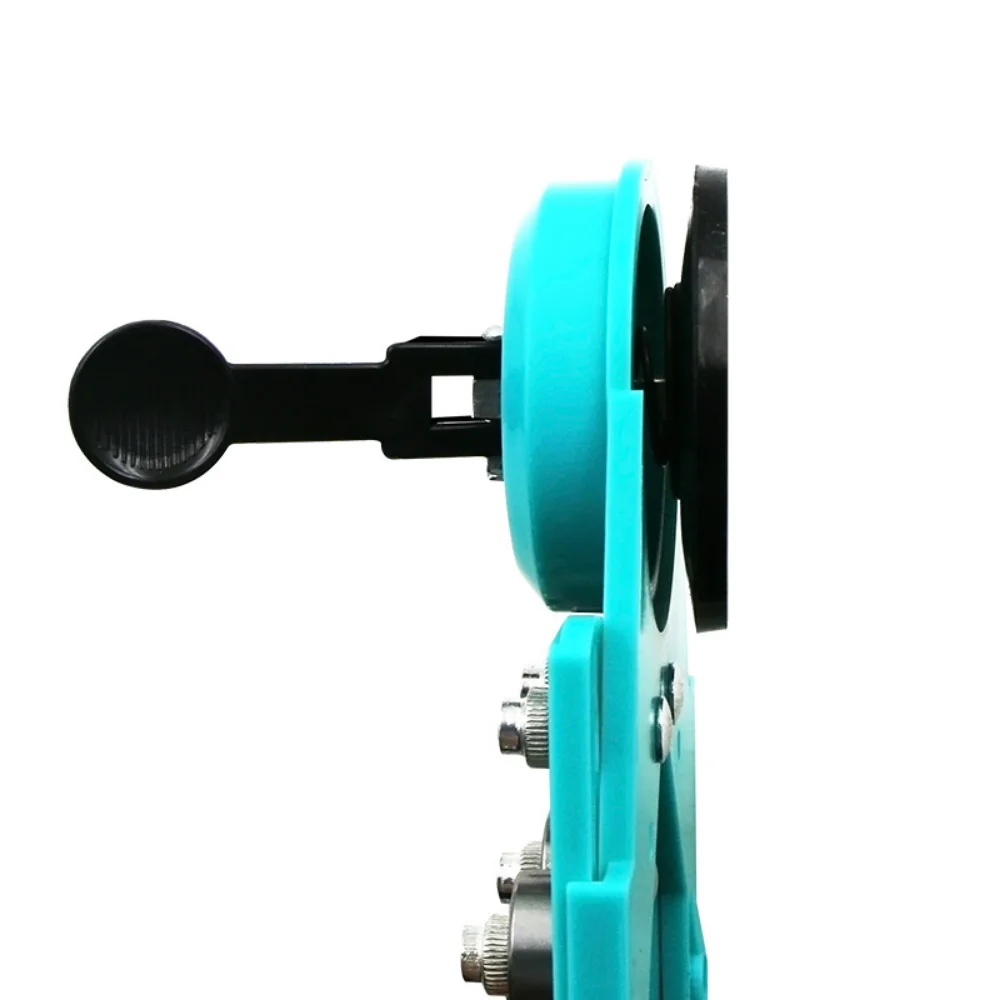

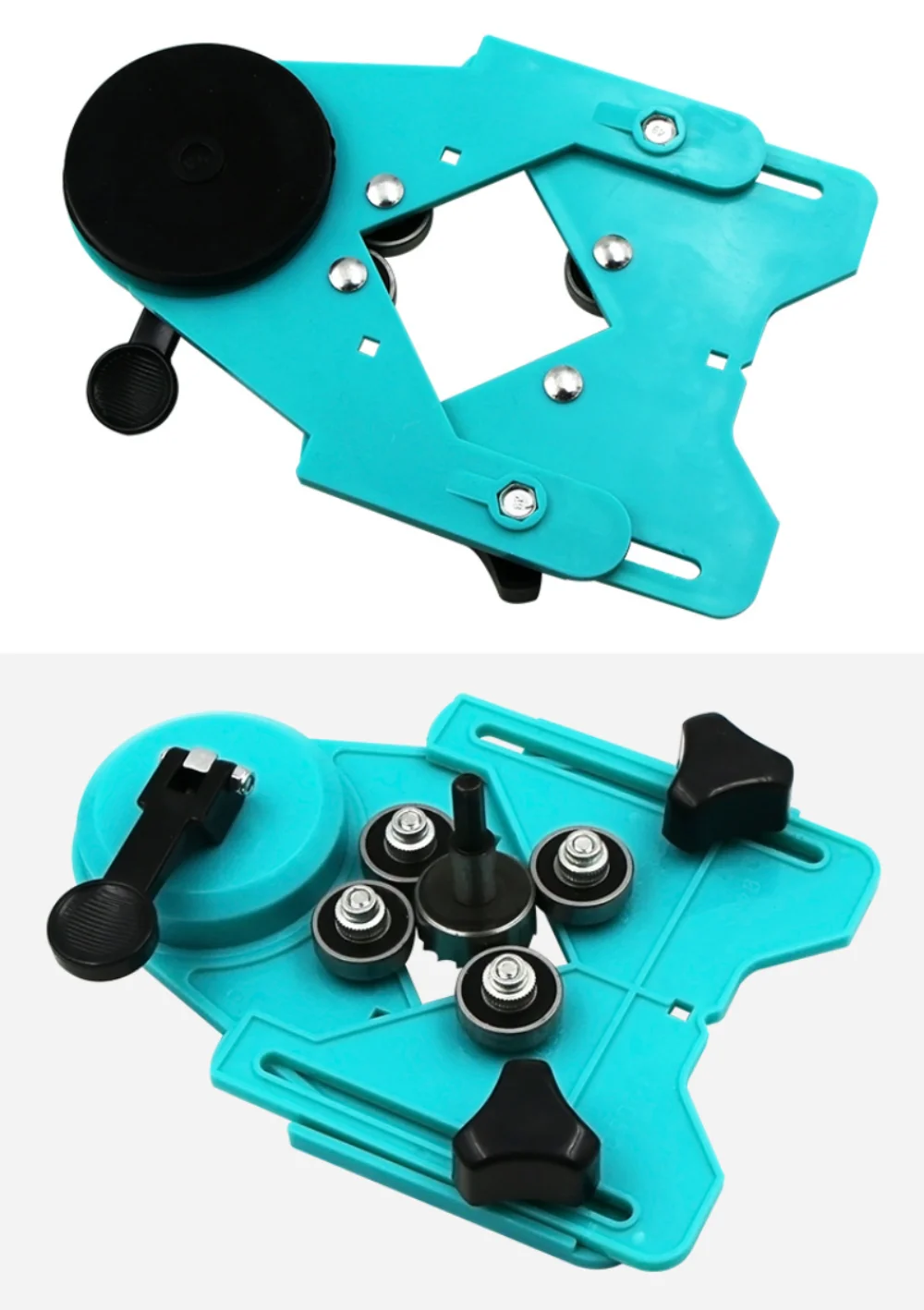

Product name: ceramic tile glass opening locator
Commodity material: engineering plastic/closed bearing
Net weight of goods: 337g

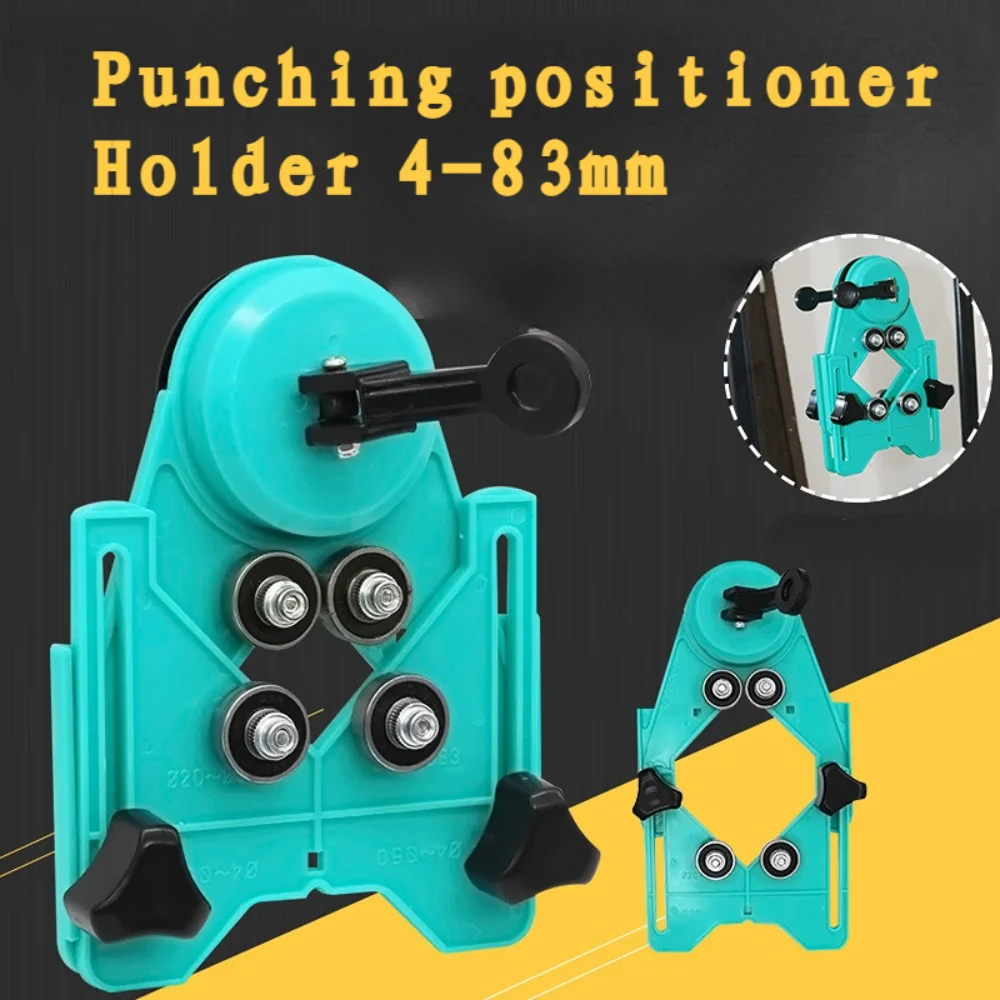

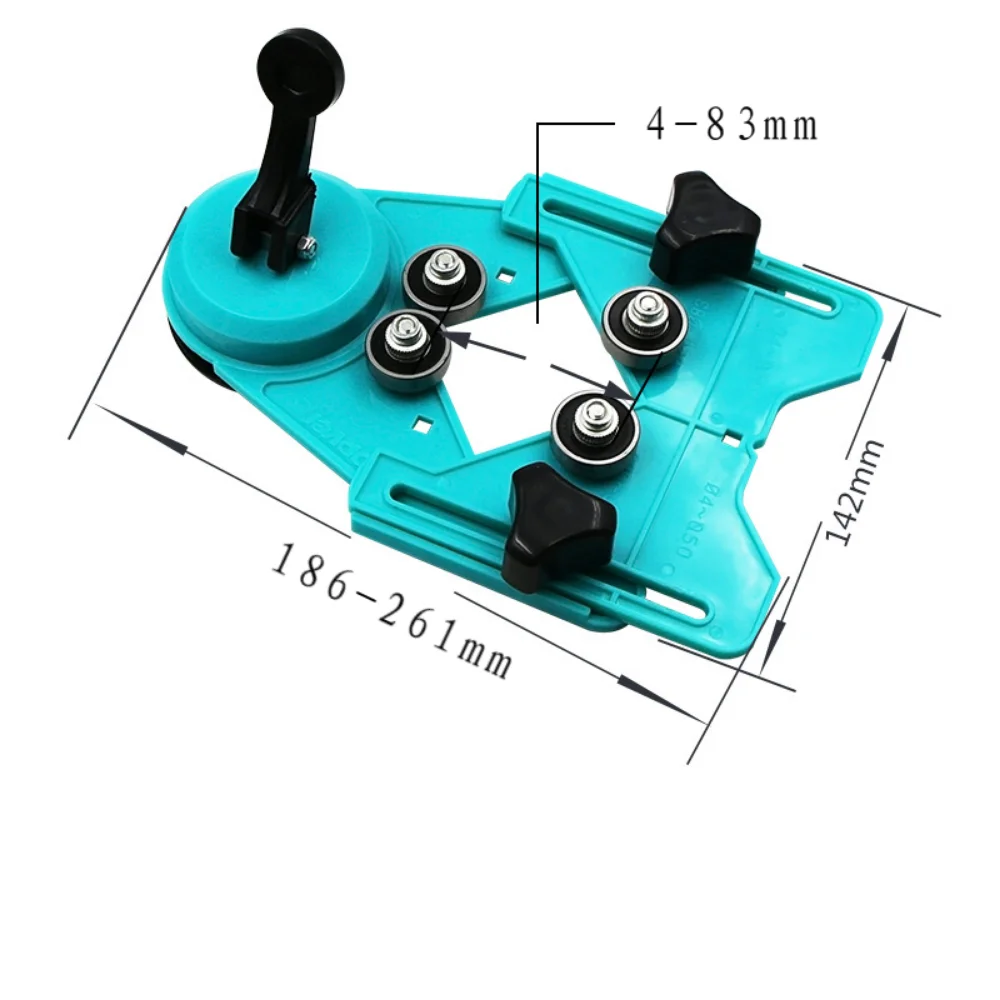

Holding range: 4~83mm

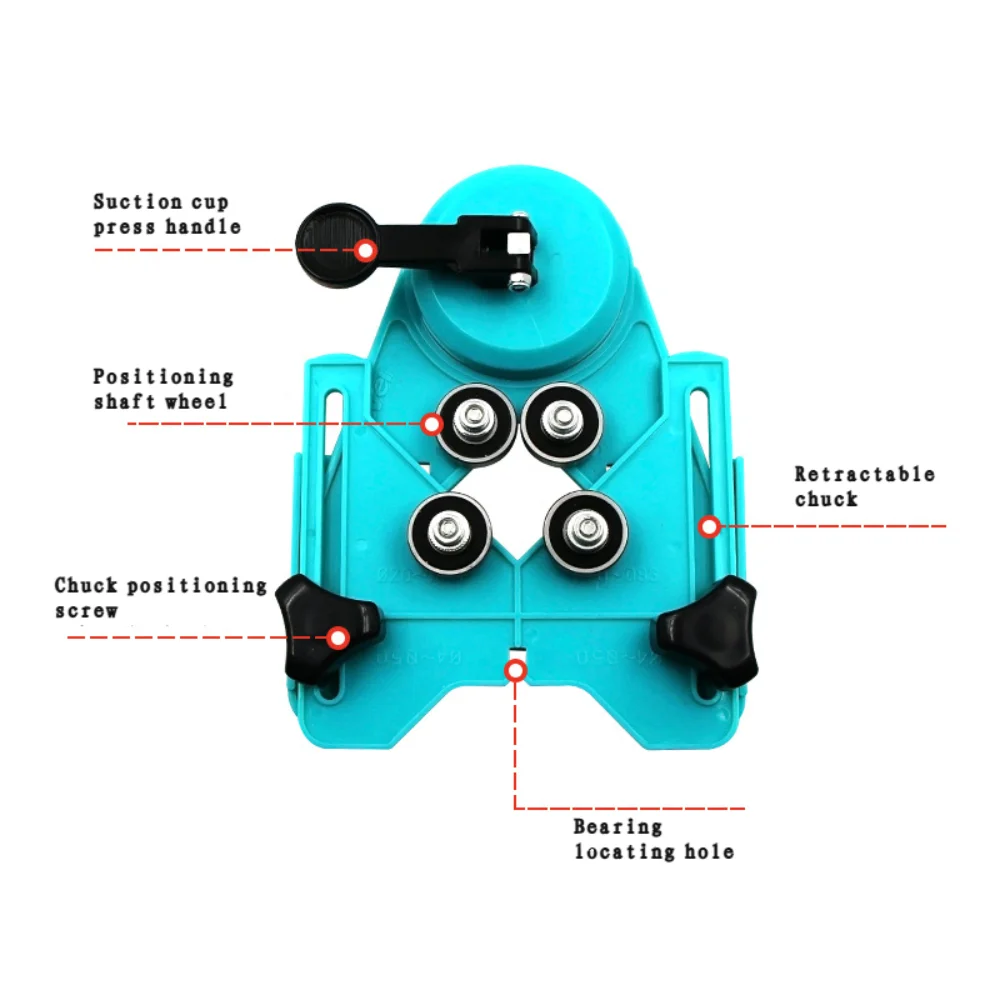

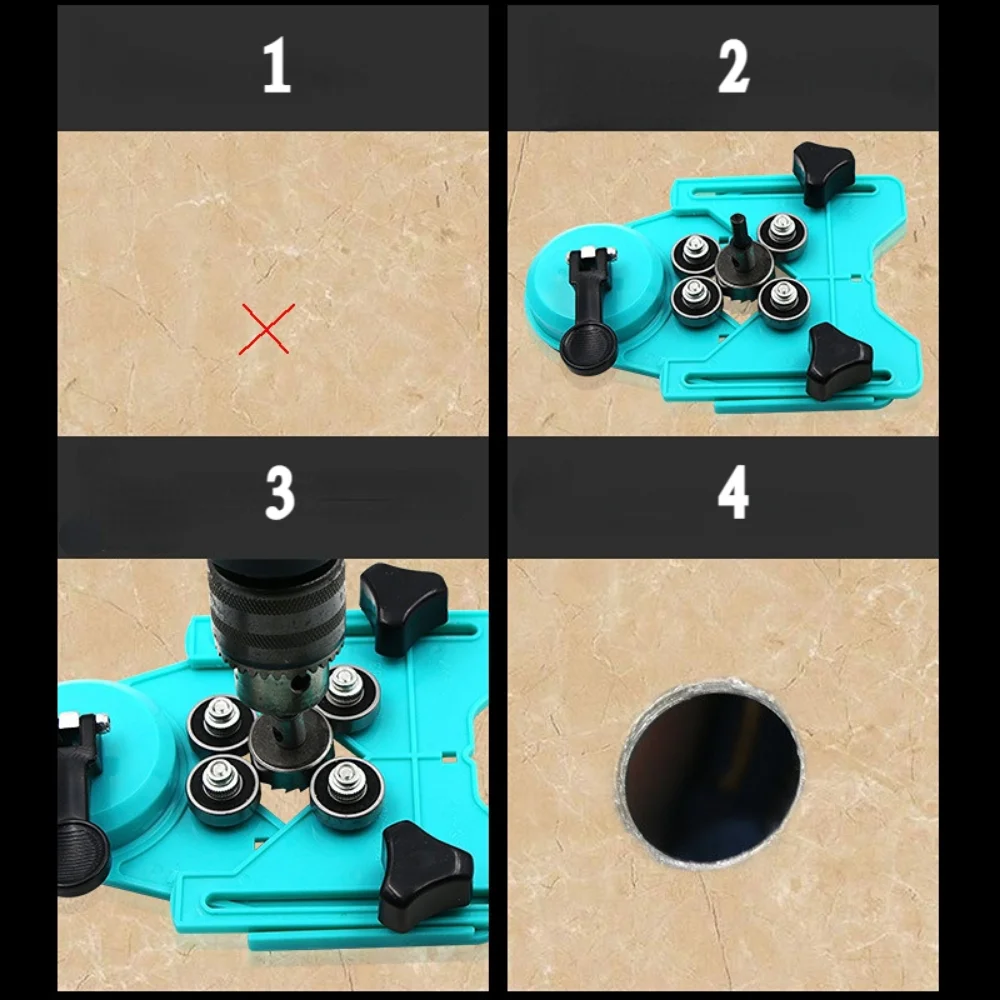

Use method 1. Mark the hole 2 to be punched. Put the nameplate into the limit hole for positioning, and press the handle of the suction cup to lock it 3. Securely position the fixed position of the rotating shaft wheel and stabilize the positioner

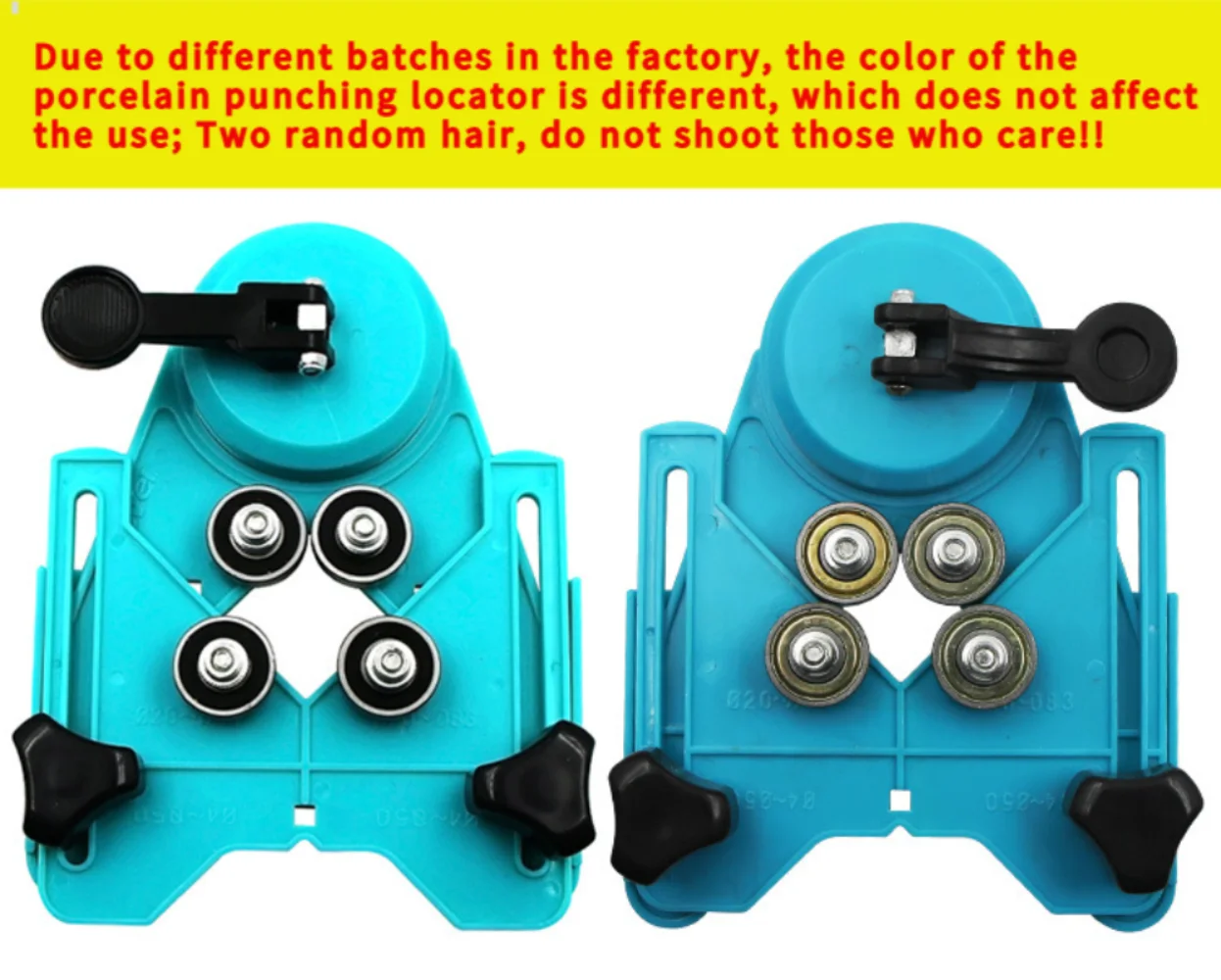

Precautions before purchase: The new version of the product is slightly different from the picture, and there is no font in the real object. During version change, two models were randomly distributed!
2,

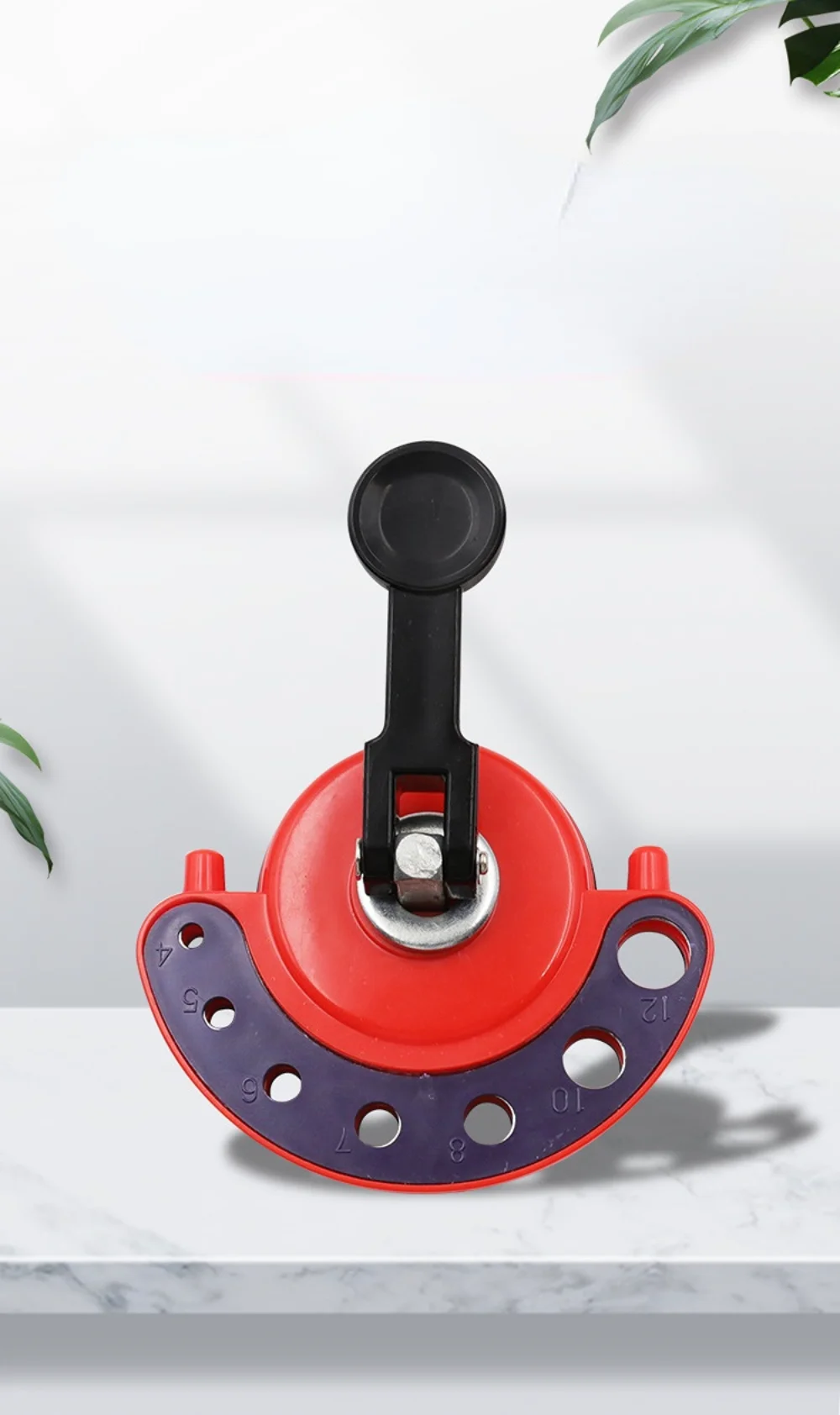

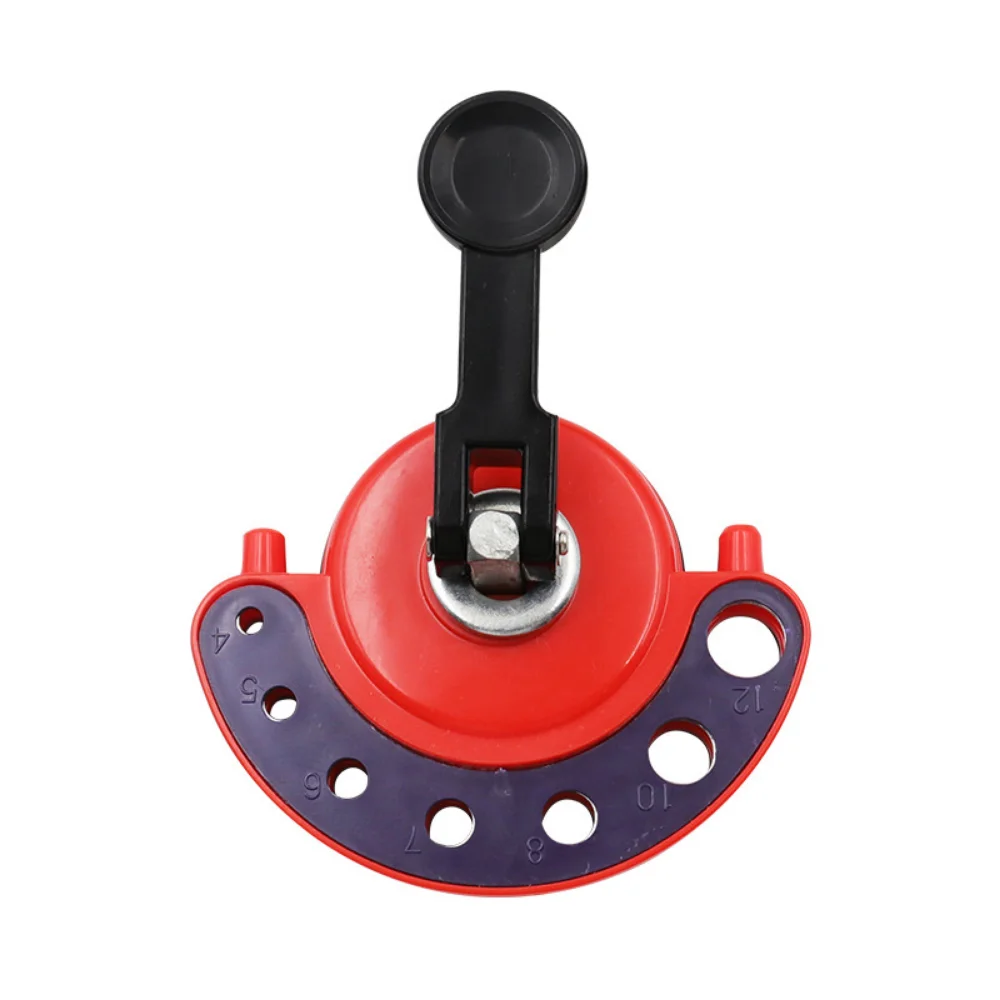

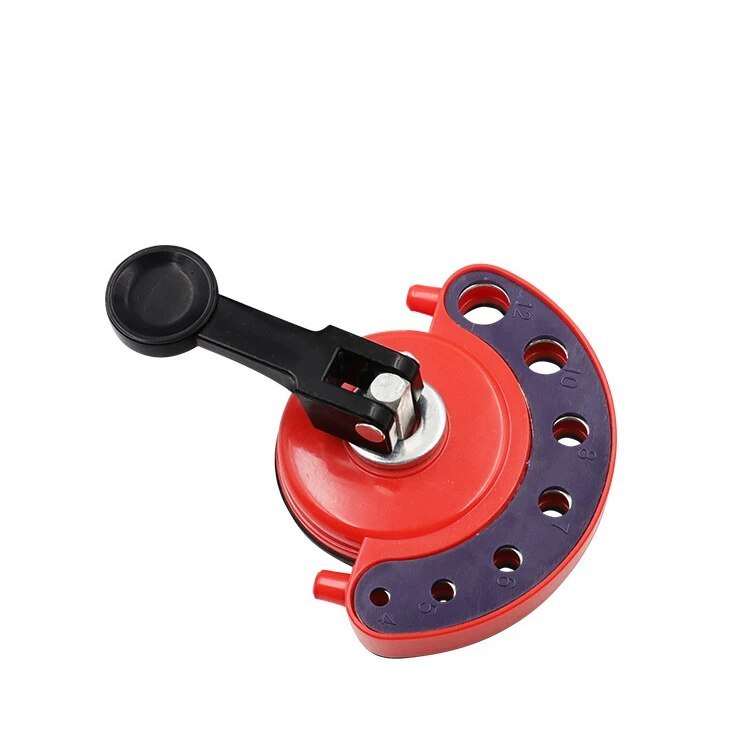

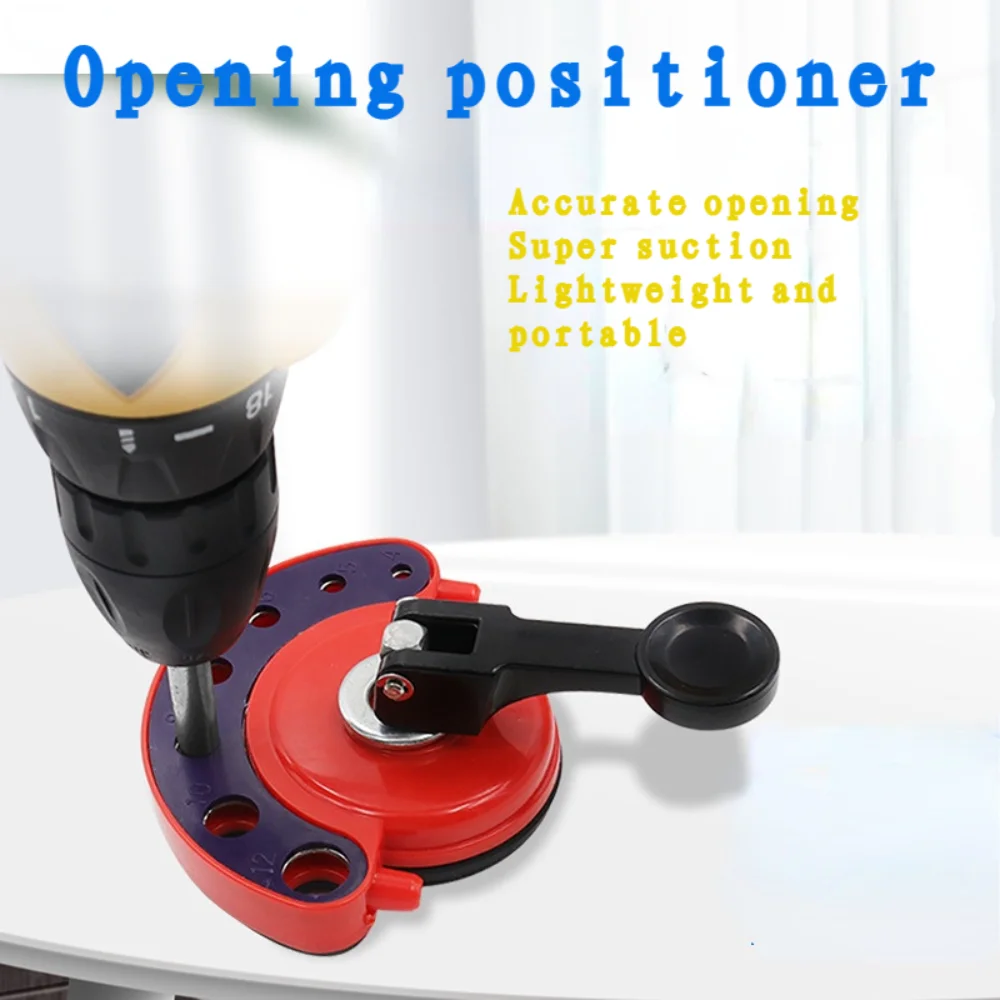

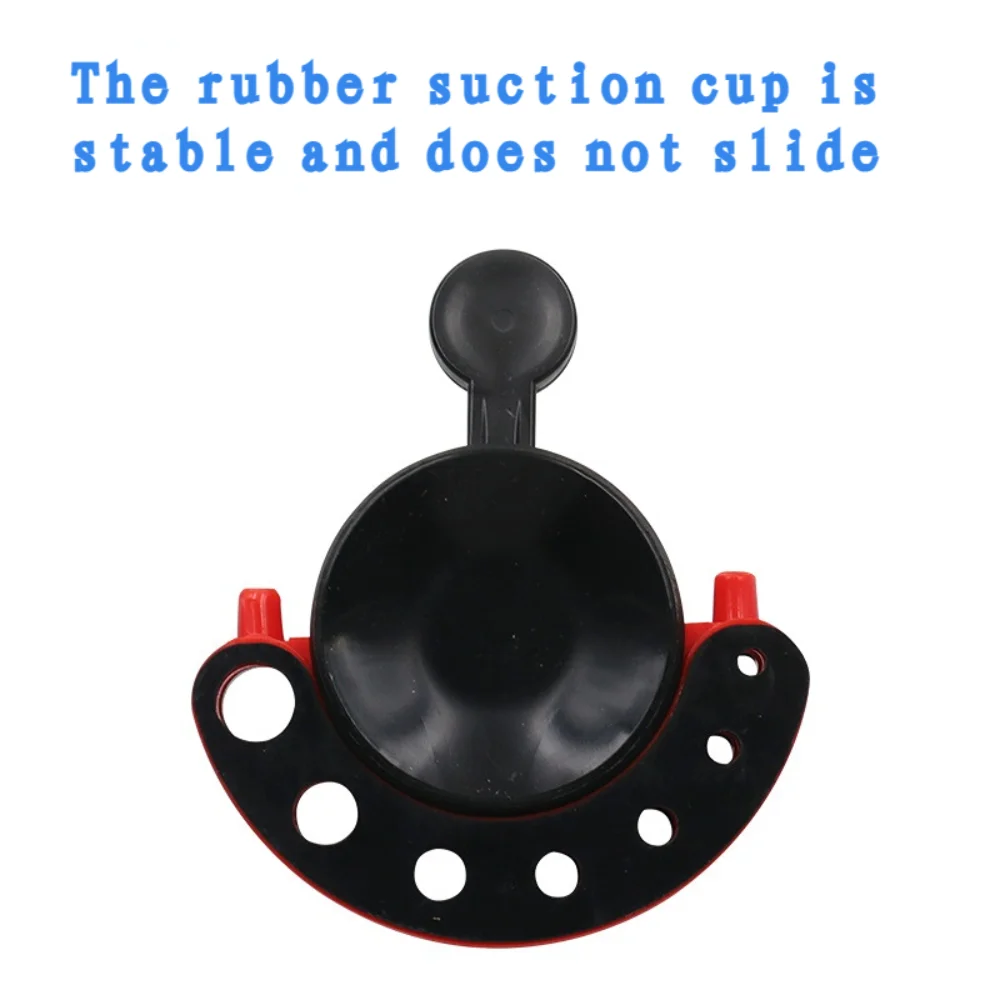

Product name: glass head positioner
Product material: cemented carbide

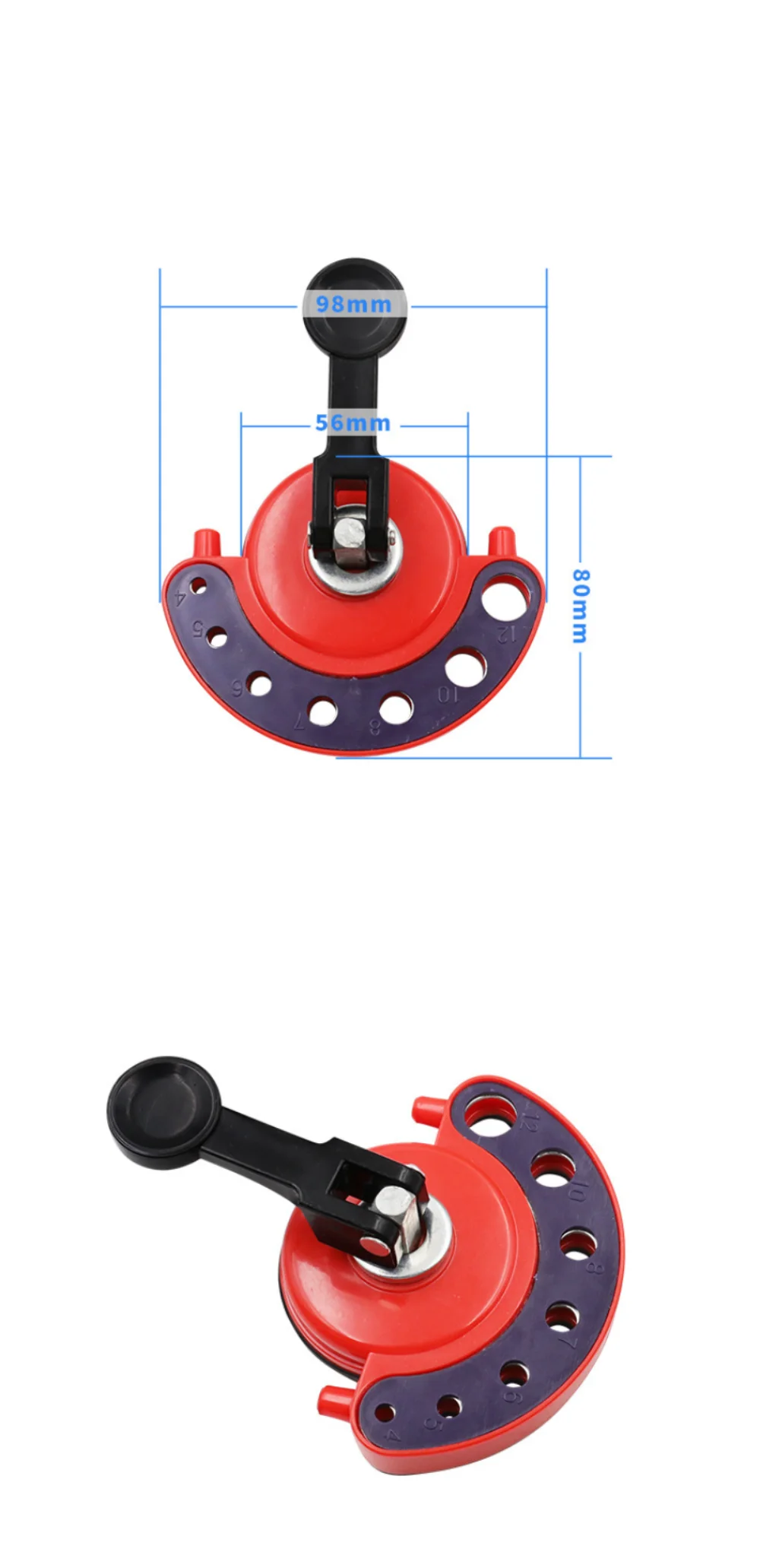

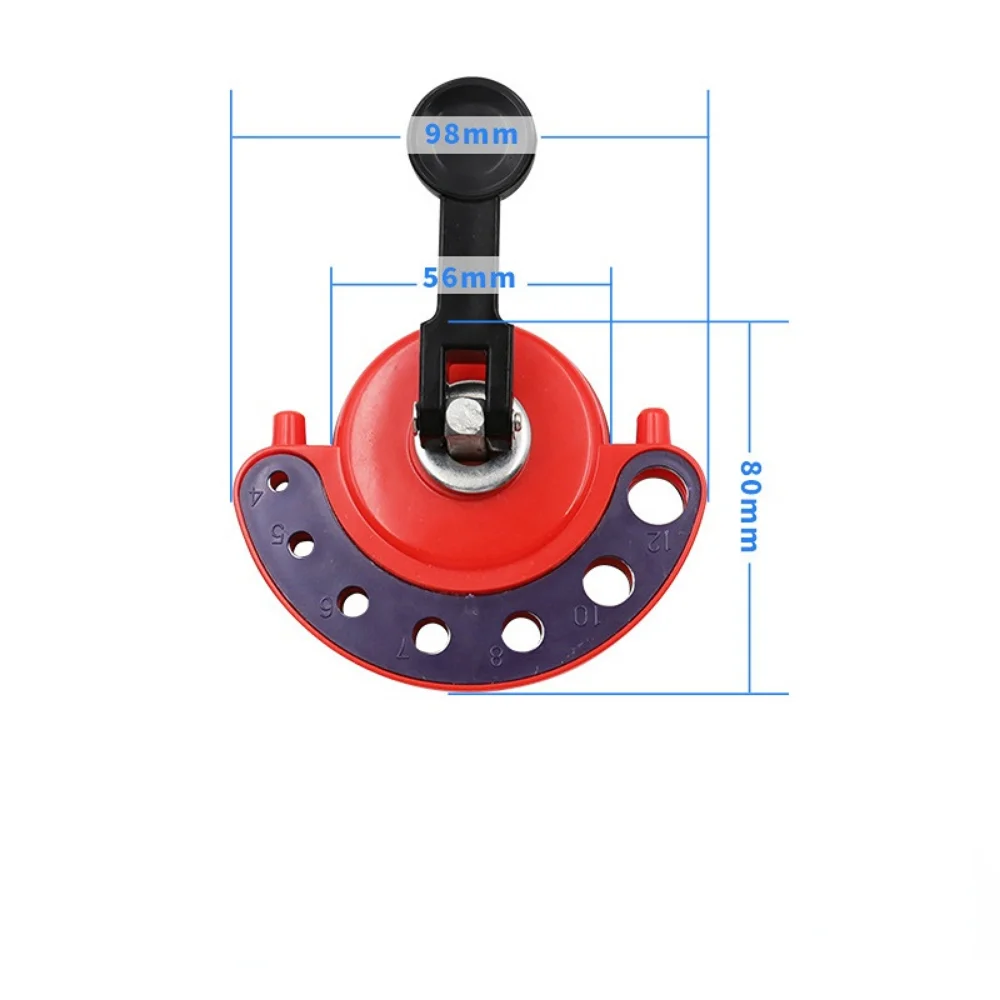

Product size: 98 * 80 * 56mm
Product weight: 118g

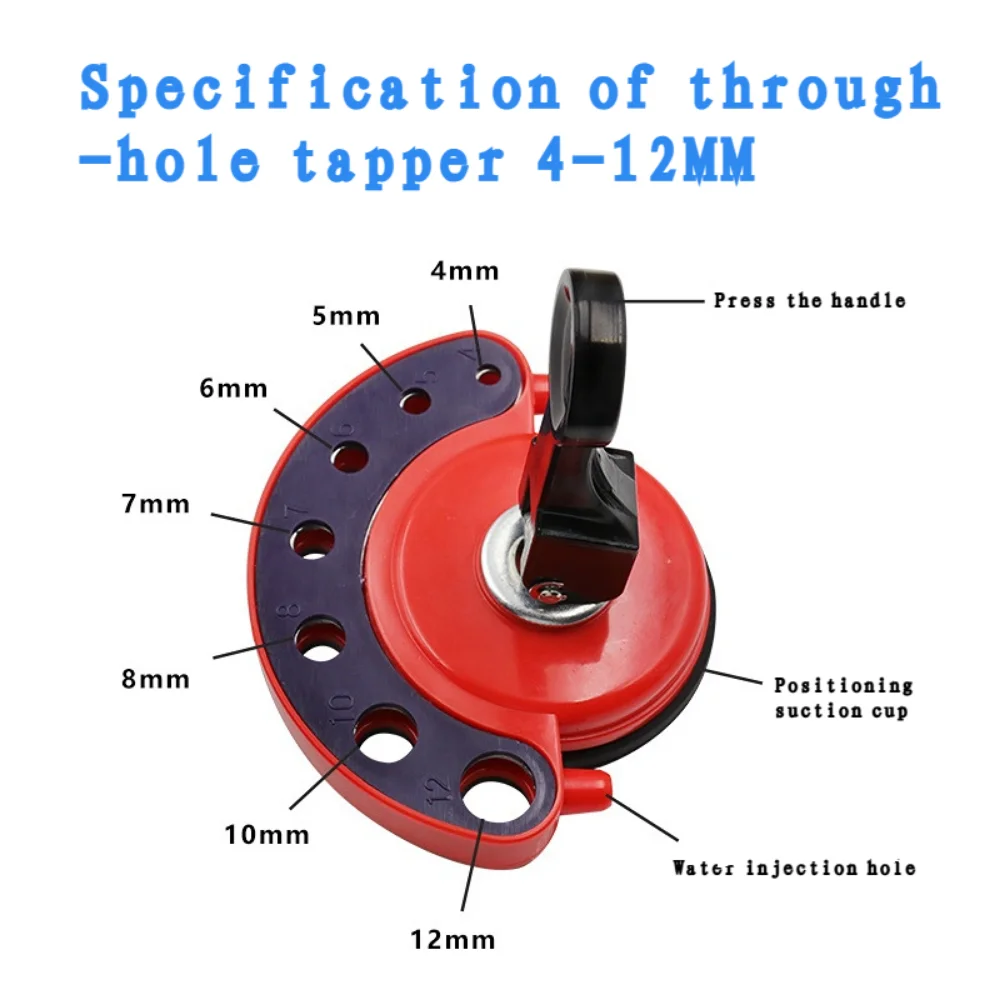

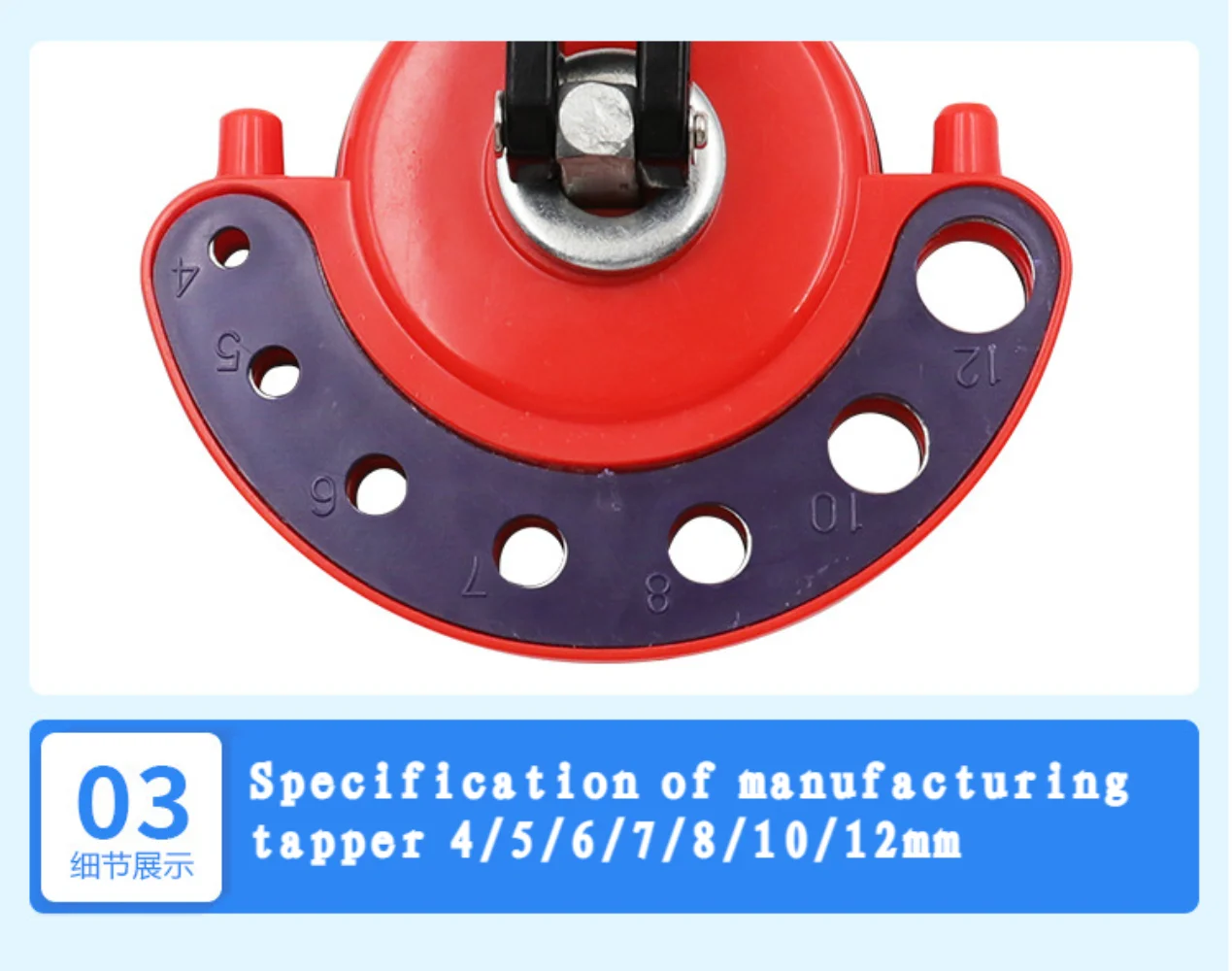

Specification: 4-12mm

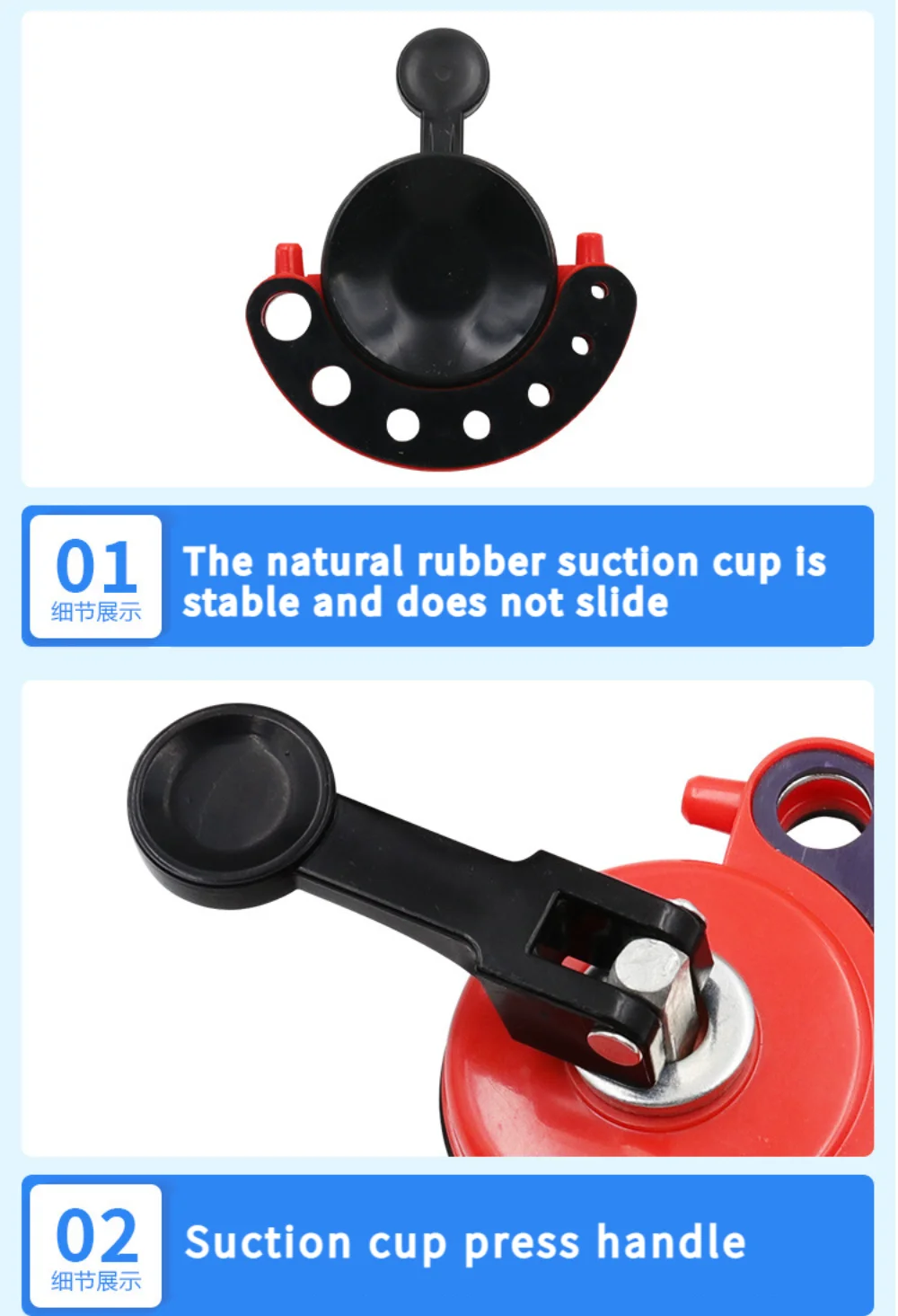

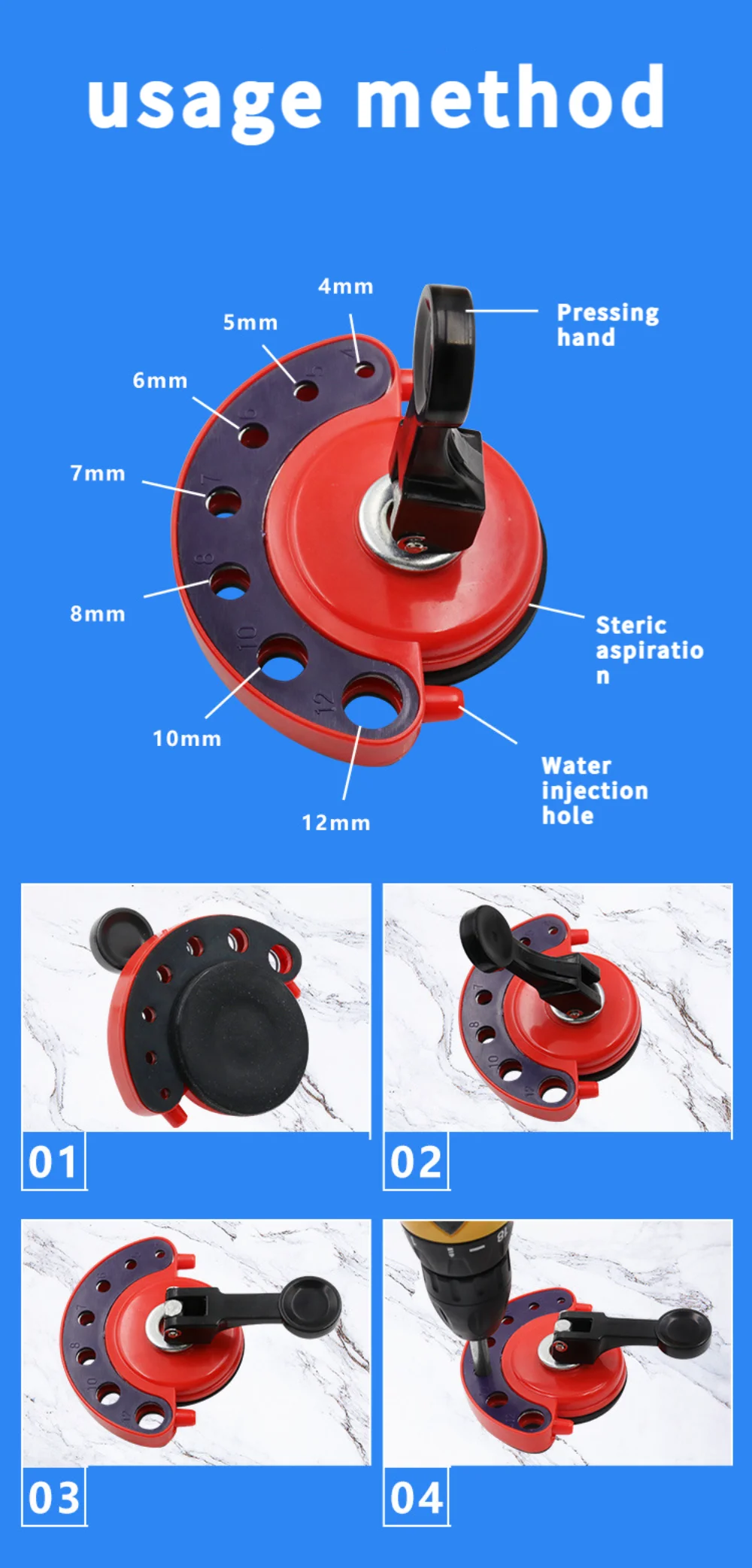

Scope of application: porcelain damage/glass positioning and drilling Method 01 Check whether there are sundries on the suction cup and glass/porcelain to prevent the suction cup from being fixed 02 Place the positioner flat on the glass/porcelain 03 Press the black handle firmly to make it firmly adhere to the glass/porcelain 04 Put the head into the hole of the corresponding specification, and then you can rest assured of drilling
